How efficient is the bond market?  We’ve found inefficiencies within US sectors, size/style, and international stocks.  Do similar inefficiencies exist in the bond market?

One would belief that fixed income should be easier to accurately predict returns and thus the bond/fixed-income market should be relatively efficient.  In this post we’ll put this assumption to the test.

We’ll go through the annual returns of 11 different bond asset classes (and the S&P 500 and inflation for comparison) to analyze the performance of these bond assets.  This analysis includes a look at the historical data (available to download here), comparison of moving trends, calculate 4 performance and 4 risk metrics, look at the correlation matrix, offer some additional resources and point out some investment opportunities to consider.

Annual Returns of Bonds

Trailing 3 Year Returns

The table below shows the annual returns of the 11 bond asset classes compared with the S&P 500 and inflation for comparison.  A few years and asset classes are highlighted in yellow because the data does not extend that far back in history.

  • Junk bonds uses corporate bond returns for 1976-1978
  • Intermediate municipal bonds use aggregate US bond returns for 1976-1977
  • International bonds use 90% US bond, 10% international stock
  • Emerging market bonds use 90% international bonds, 10% emerging markets

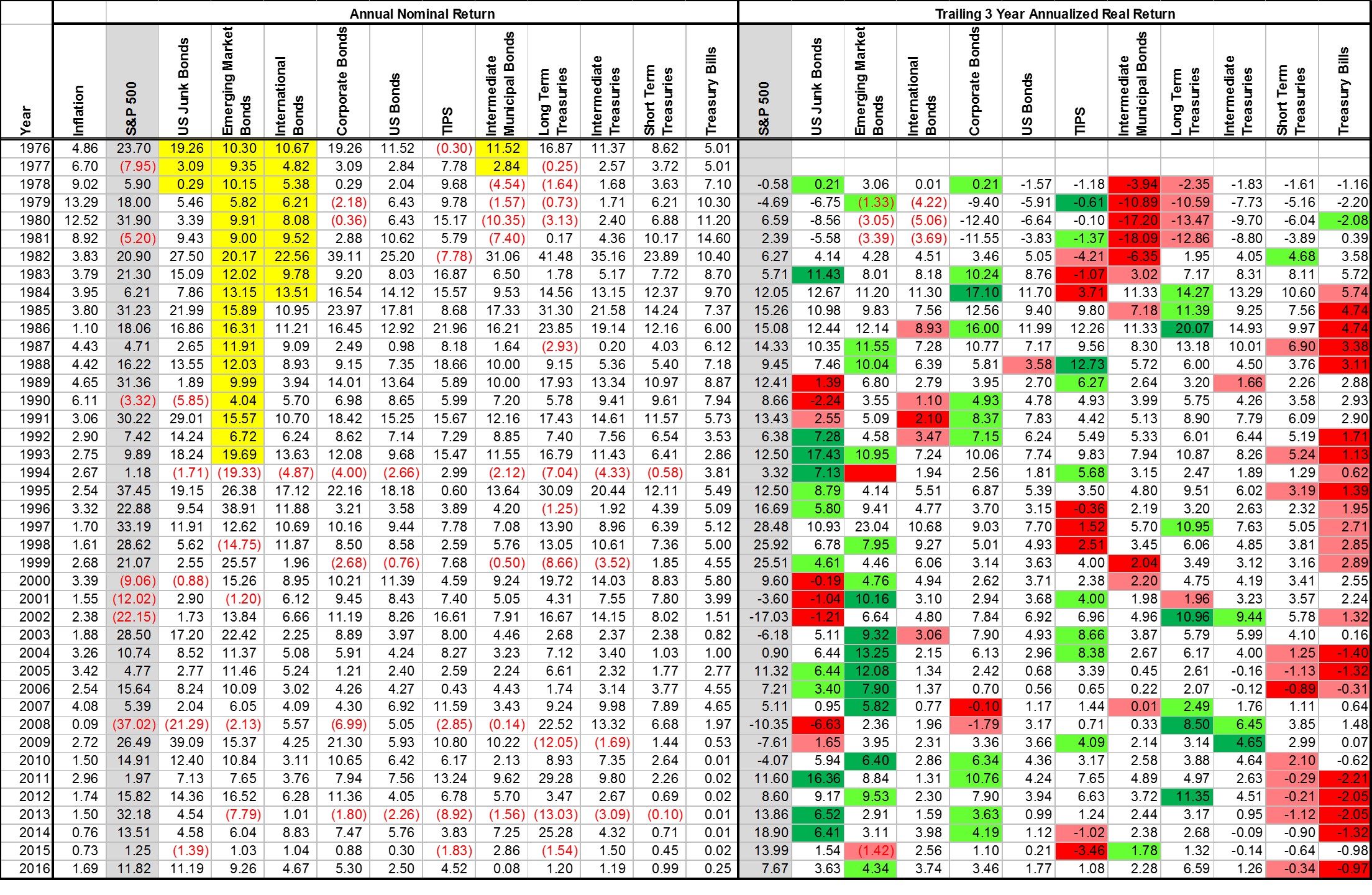

Historical returns of bonds with trailing 3 year returns.
Annual nominal returns of bond asset classes are shown on the left, with the annualized trailing 3 year real return on the right. Conditional formatting is used to highlight the best (dark green), second best (light green), second worst (pink), and worst (dark red).

Trailing 20 Year Returns

Below is the same table; but now with the trailing 20 year returns.  Immediately emerging market bonds (even after our fabricated returns stretch) significantly outperform on a consistent basis.  Long term treasuries also seem to do well consistently.

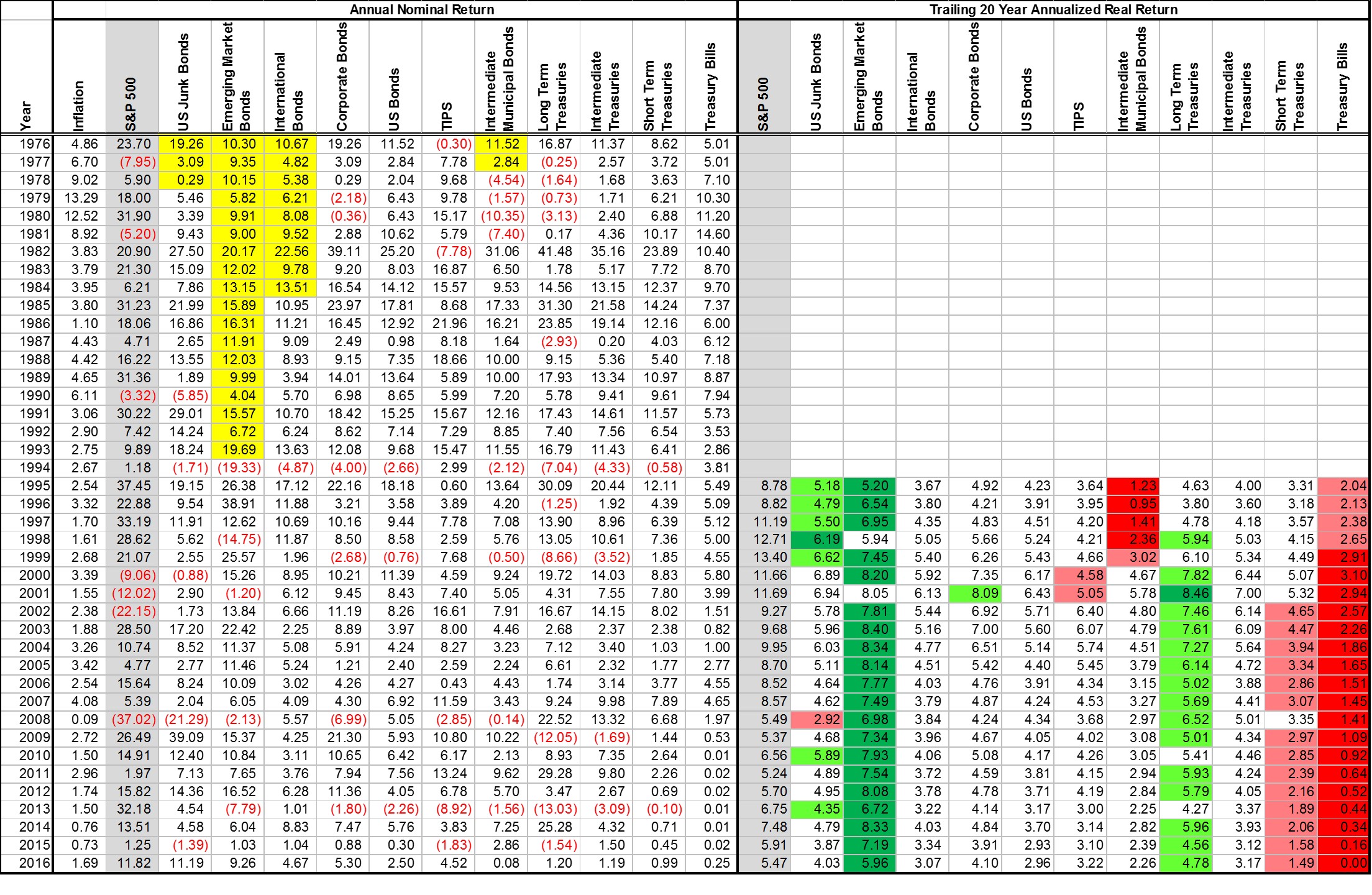

Trailing 20 year real returns of bond asset classes
Annual nominal returns of bond asset classes are shown on the left, with the annualized trailing 20 year real return on the right. Conditional formatting is used to highlight the best (dark green), second best (light green), second worst (pink), and worst (dark red).

Risk Adjusted Performance

With any investment analysis, looking at the overall returns (and trailing returns) is not a fair way to quantify performance.  What we really want to conclude is if one asset class is exhibiting higher risk-adjusted returns than another.  Many investment professionals will traditionally use only one metric to define risk and another to define return performance.  In this post we’ll look at 4 different pairings to gain a deeper understanding of how these asset classes perform.

Average Return vs Volatility of Returns

The most common plot you’ll see when analyzing investment performance is the annual average return vs the standard deviation of those annual returns. Markowitz pioneered the mathematics behind quantifying investment returns on these metrics; but more importantly, he showed that one can calculate the efficient asset allocation given these metrics and the correlations.  Because of his work done in the 1950s, investment professionals still tend to solely rely on these metrics to quantify risk/return.

In doing so, the bond market appears fairly efficient.  Note that the results shown are real returns (after inflation).  Municipal bonds look poor but, this is showing pre-tax returns – municipal bonds fair much better in after tax returns.

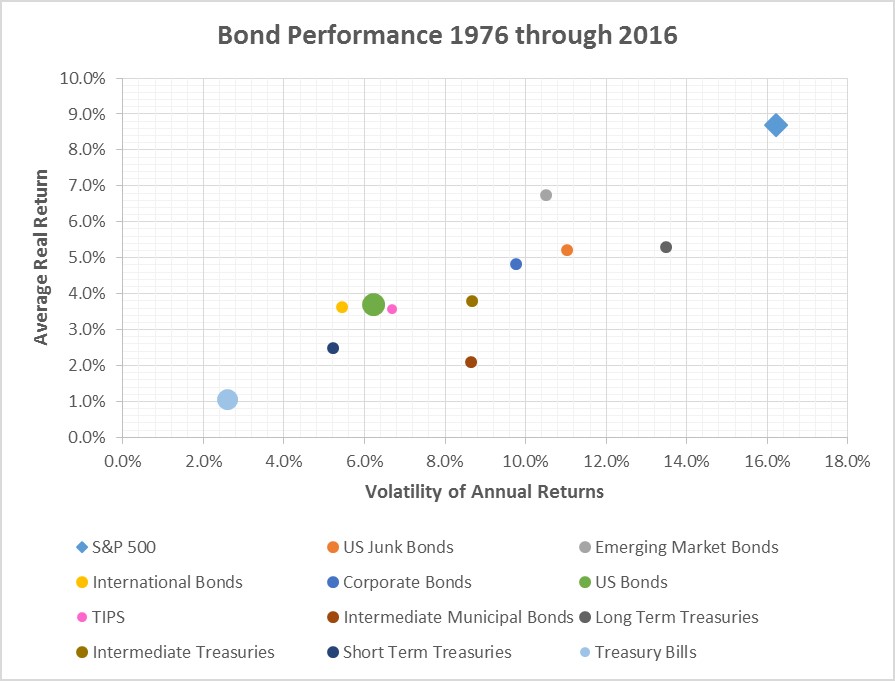

Average annual returns bonds vs standard deviation of returns
Average annual return plotted against the standard deviation of annual returns appears to paint a picture of a fairly efficient bond market.

Annualized Return vs Downside Risk

Volatility is not the best metric to use for measuring risk.  It penalizes assets that have fluctuating years of gains.  Investors care about the frequency of how often they lost money and how severe those losses were. Dr. Frank Sortino in the 1980s recognized that volatility didn’t tell the full story on investment risk; so he developed a downside risk metric that is used in his Sortino ratio (see here for the math and more information behind the Sortino ratio.

If we plot the annualized returns against downside risk we can start to see how efficient the bond market truly is.  In the plot, there a number of assets that are skewed to the right (indicating inefficiency); but notice the big green circle in the upper left.  That big green circle is the total US bond market meaning that it holds allocations in all those other circles/asset classes.

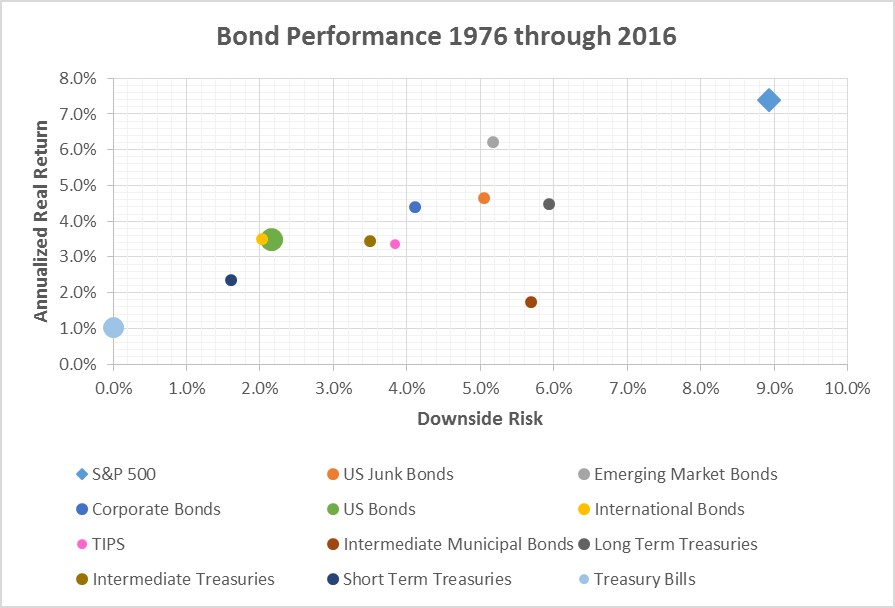

Annualized returns vs downside risk of bonds
The annualized real return is plotted against the downside risk (RMS of losses) to better illustrate what an investor felt during his/her investment in these assets.

Trailing 10 Year Returns Average vs Volatility

Those last two plots fail in showing how consistent the asset class performs.  The overall metrics could be skewed from a handful of very good or very bad years.  In an effort to quantify how consistent an asset class performs, I’ve plotted the average 10 year real annualized return vs the volatility of those returns.

Again we see that big green data point (aggregate bonds) at the inflection point on the upper left indicating that it is offering maximum efficiency… at least for the US bonds. Emerging market bond returns become even more compelling and international bonds also appear to offer unique performance benefits.

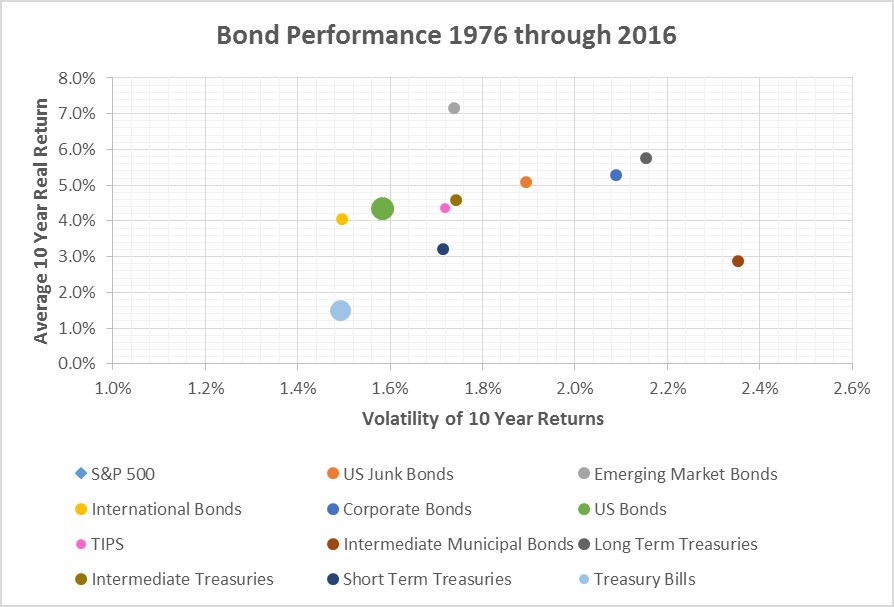

Historical average 10 year return vs volatility of returns
Calculating the average 10 year return and volatility of those returns starts to illustrate how consistent different asset classes are.

Worst 15 Year Return vs Maximum Drawdown

Now let’s look a doomsday scenario and plot the worst trailing 15 year return against the largest drawdown.  In this plot you notice a couple telling things:

  • Although emerging market bonds are volatile, if you give them a bit of time they do the best job at preserving capital and limiting losses.
  • TIPS (treasury inflation protected securities) also do an excellent job at preserving capital compared to other bond asset classes.  This makes sense because bonds traditionally lose money to inflation, which TIPS tries to mitigate.
  • Cash isn’t as safe as you may assume.  The worst 15 year performance of treasury bills (the equivalent of a bank savings account, although probably slightly better) is a -1% annualized return (or loss) against inflation.  That’s bad!  This will be the topic of a future post; but cash savings are not what they are made out to be – an efficient safe asset allocation has historically done a better job at preserving capital when inflation is considered than just keeping it in the bank.

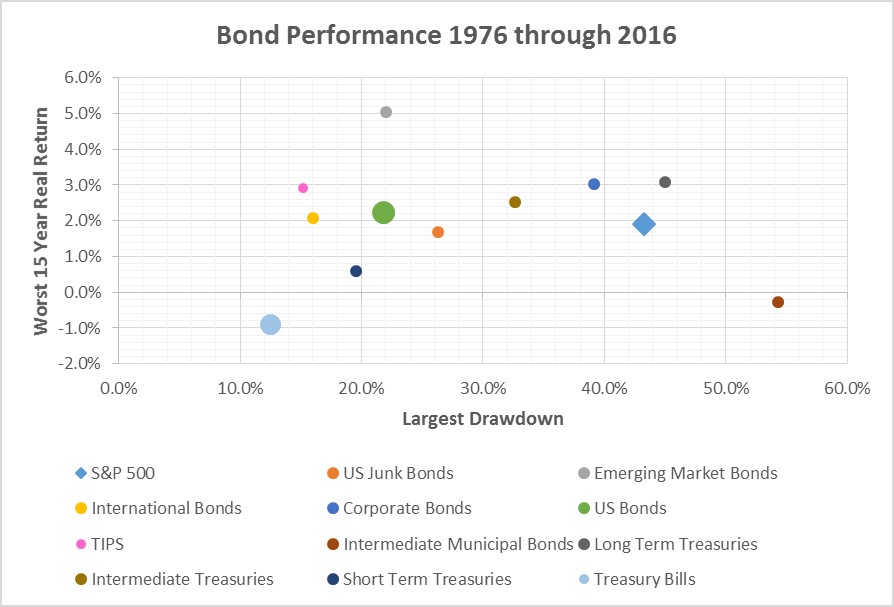

The worst trailing 15 year return is plotted against the largest drawdown to illustrate how bad it has been with these assets historically.

Performance Summary

The table below summarizes the data presented in the preceding tables and figures.  I used conditional formatting to highlight how well these asset classes performed on a risk adjusted basis relative to their peers.  A couple takeaways:

  • Emerging market bonds, although risky, offer superior risk-adjusted returns
  • International bonds also offer good risk adjusted returns
  • In the US, aggregate bonds are very good at capturing the overall returns and therefore provide an efficient means of investing in the entire bond market
  • Municipal bonds don’t look appealing; but these results have all been on a pre-tax basis.  With taxes considered, the returns of munis will be more attractive.
  • TIPS are stable and a good preserver of capital
  • Long term treasuries are risky… when not invested in stocks as well
Bonds historical investment returns performance metrics
Performance summary metrics for bonds on historical data from 1976 through the end of 2016. These metrics are real returns (after inflation).

Correlation Matrix

After reviewing these previous plots/tables I originally came to the conclusion that long term treasuries are way too risky to actually consider investing in.  But when we take a look at the correlation, and lack thereof, to stocks we can start to see how they could provide a significant benefit over just owning an aggregate bond index.

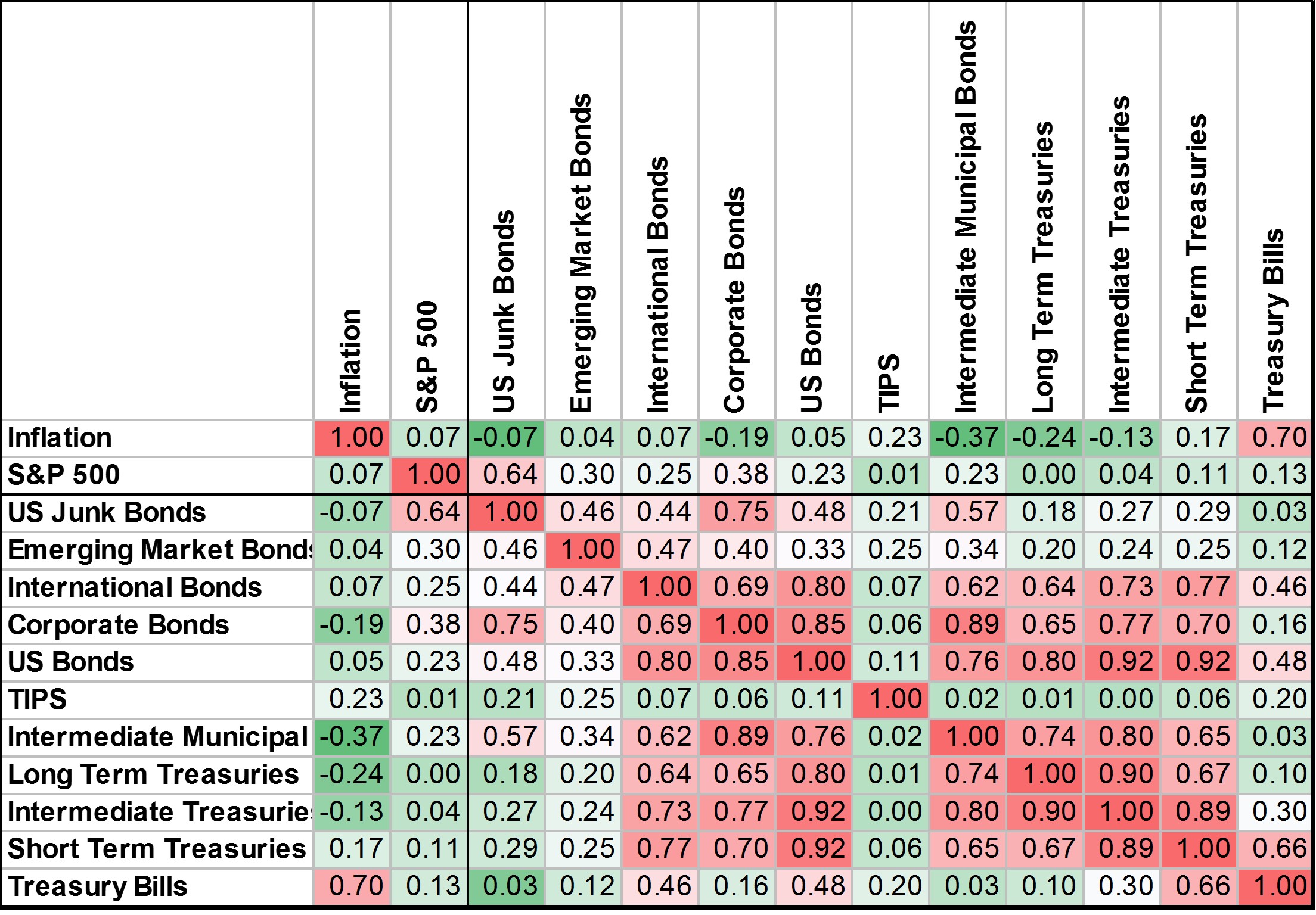

Correlation of bond asset classes.
Correlation matrix of nominal returns from 1976 through 2016 of bond asset classes compared to each other, stocks, and inflation.
  • Of bonds, long term treasuries offer the diversification benefit to a portfolio of mostly stocks
  • Junk (high-yield) and corporate bonds on the other hand are very highly correlated to the returns of stocks.  This suggests that they don’t help for most investors that have stock holdings
  • Municipal bonds are highly uncorrelated with inflation.  Therefore, in time of high inflation, these bonds tend to get punished the most.  This suggests that municipal bond investors should be sure to also invest in inflation hedges (energy stocks, gold, etc.)
  • Treasury bills historically are highly correlated to inflation.  When inflation is higher, your cash savings account will return more; when inflation is low – you’ll get a lower dividend in your savings account.  But on average, one can only expect about a 1% besting of inflation with such an investment – and it isn’t guaranteed.


The bond market is fairly efficient, meaning that an investment in aggregate bonds will do a very good job at efficiently allocating across the various bond asset classes.  But… this doesn’t take into account what happens when invested in stocks as well. As we’ll see in the next couple posts, certain bond asset classes offer an attractive hedge to stocks even though they don’t look good on their own or in an ultra conservative account.

I encourage you to download the data used in this analysis to draw your own conclusions too!

Download Spreadsheet with Data
